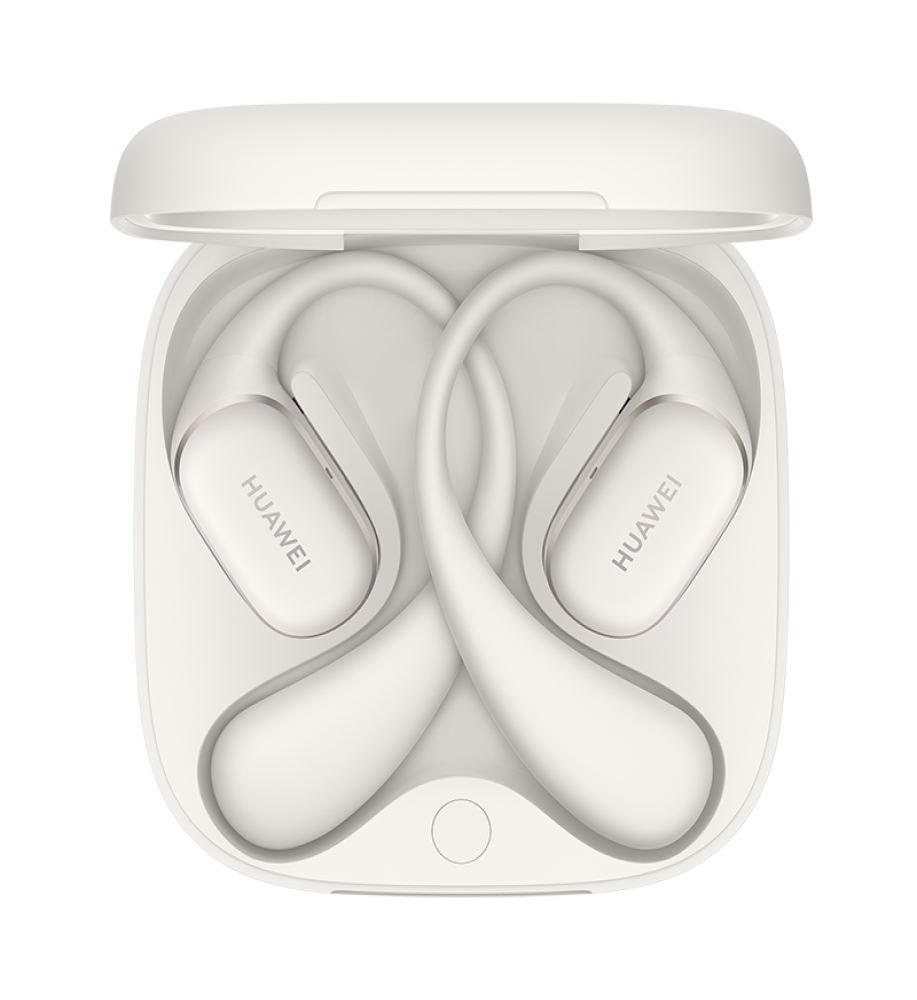

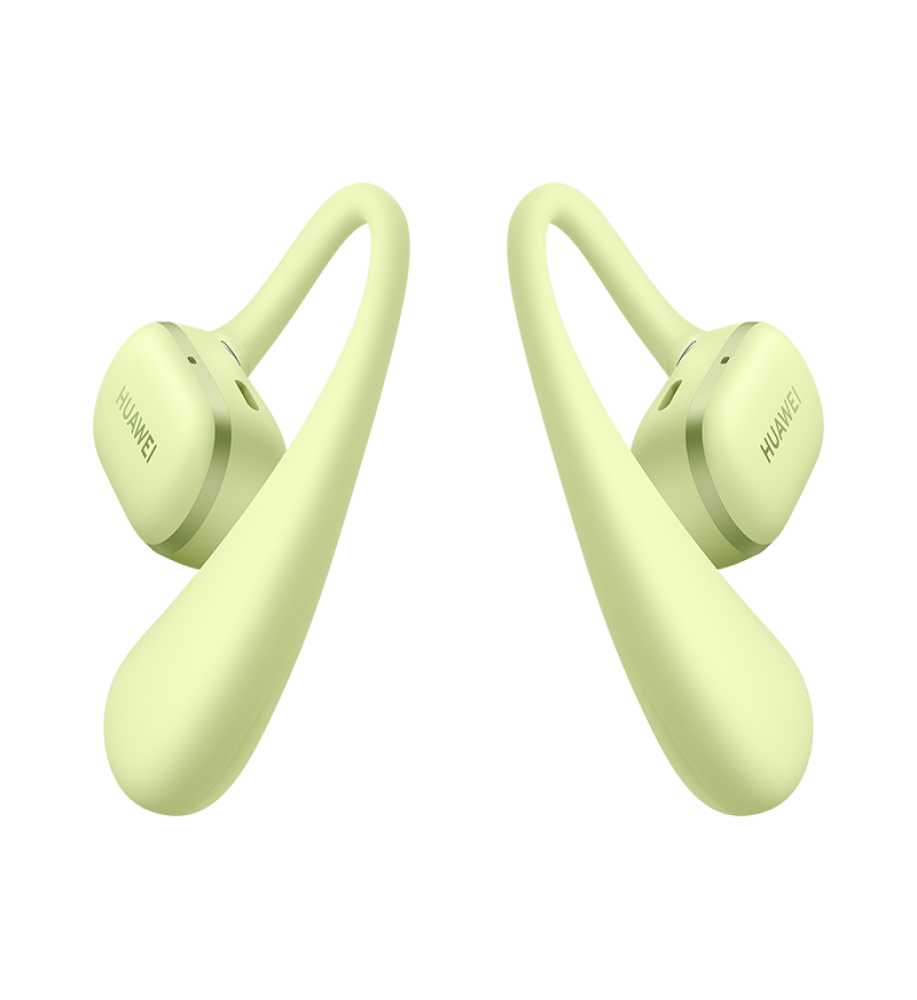

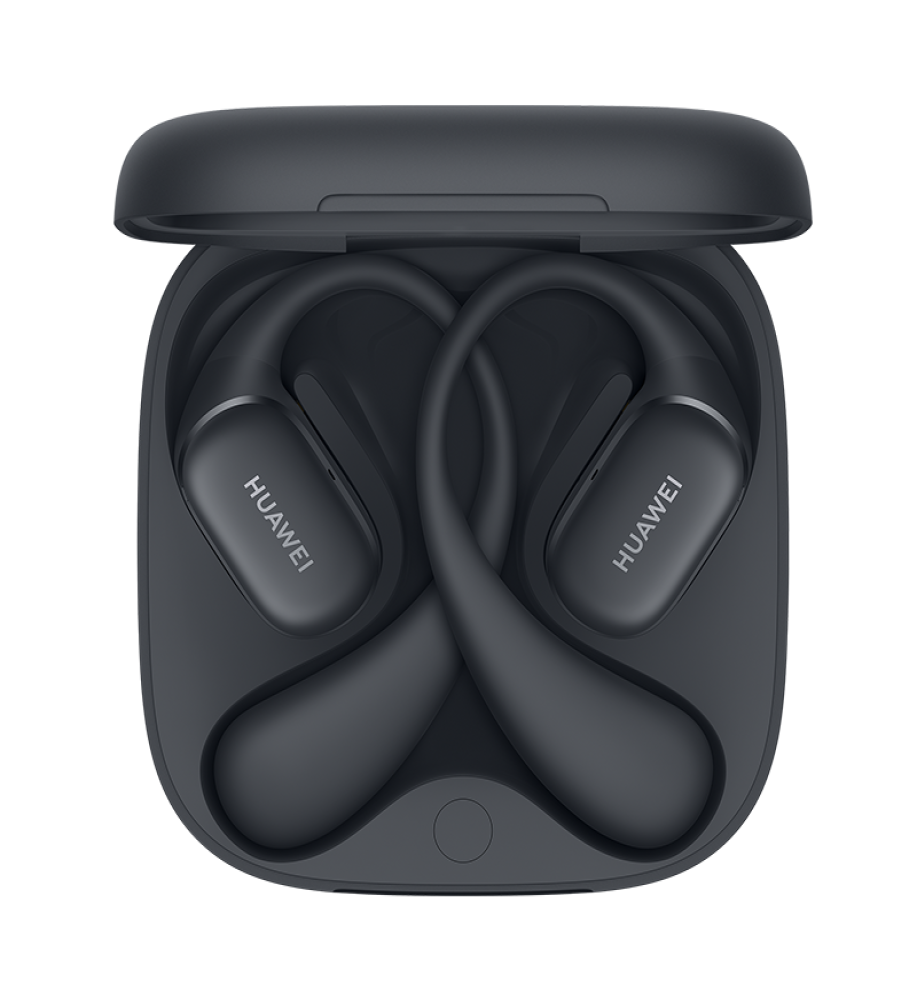

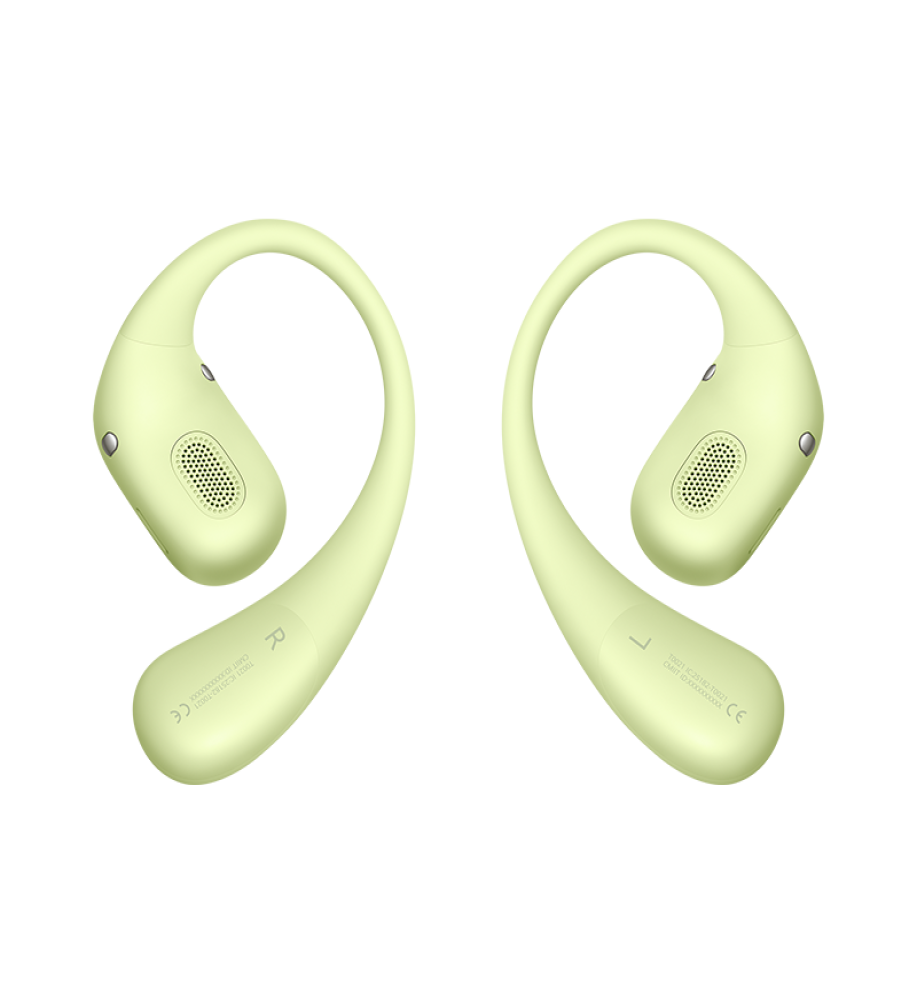

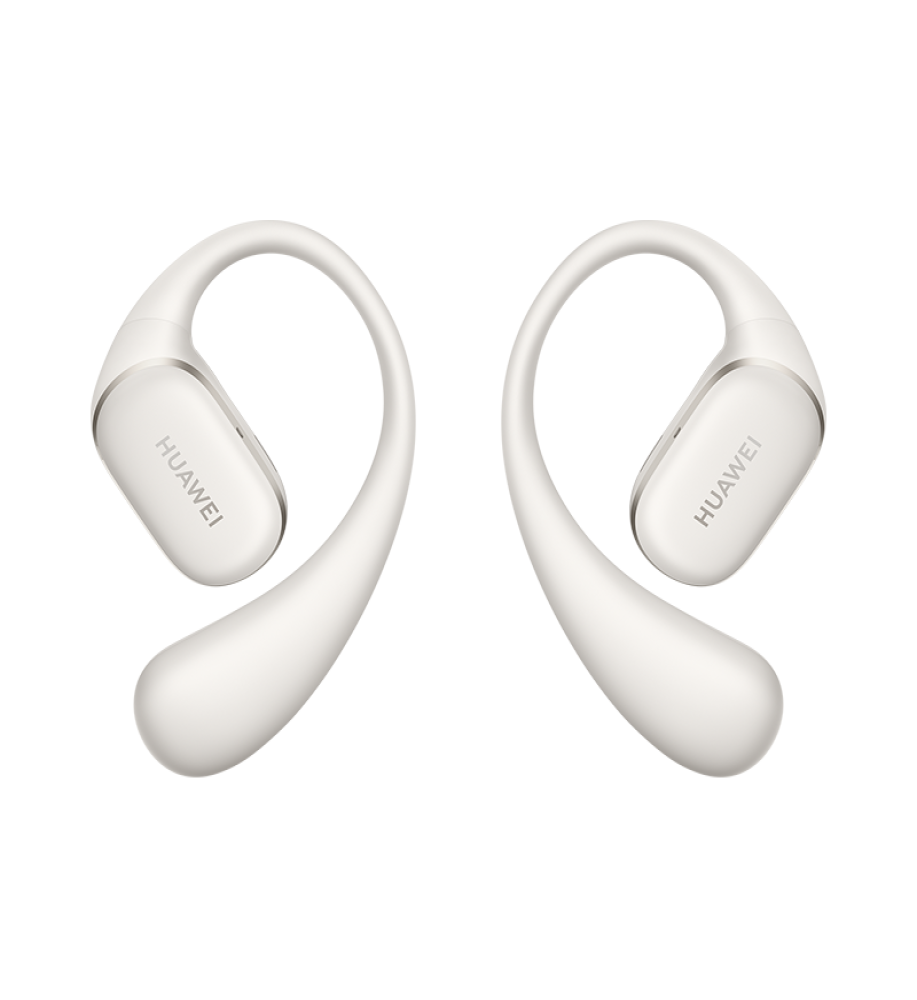

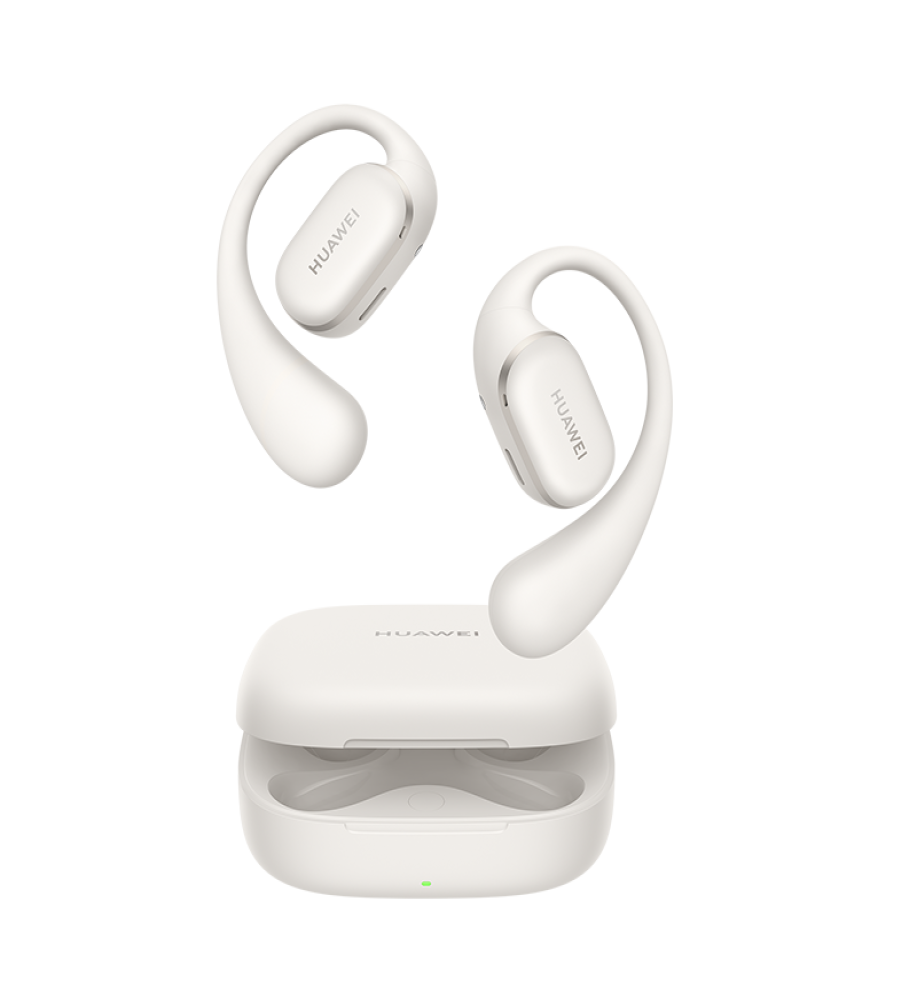

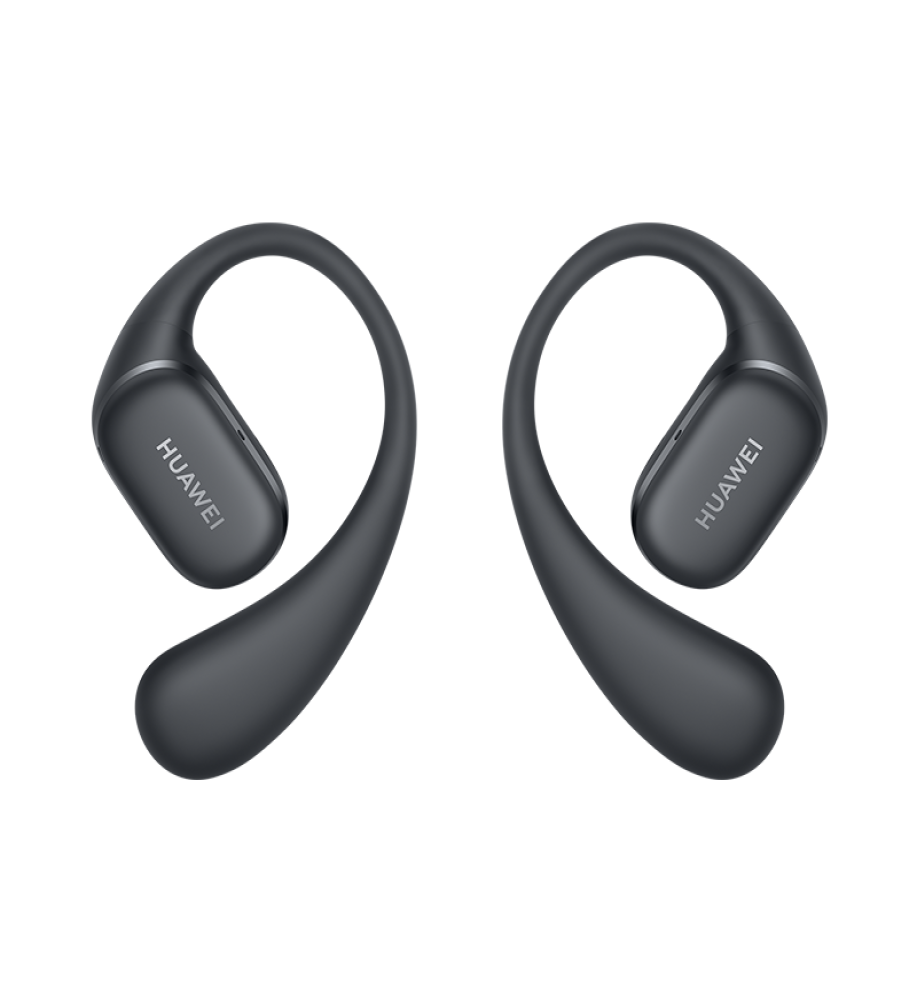

HUAWEI FreeArc ear-mounted earbuds

Dimensions
Earbuds: Approximately 45.40 mm x 18.35 mm x 47.50 mm (H x W x D)

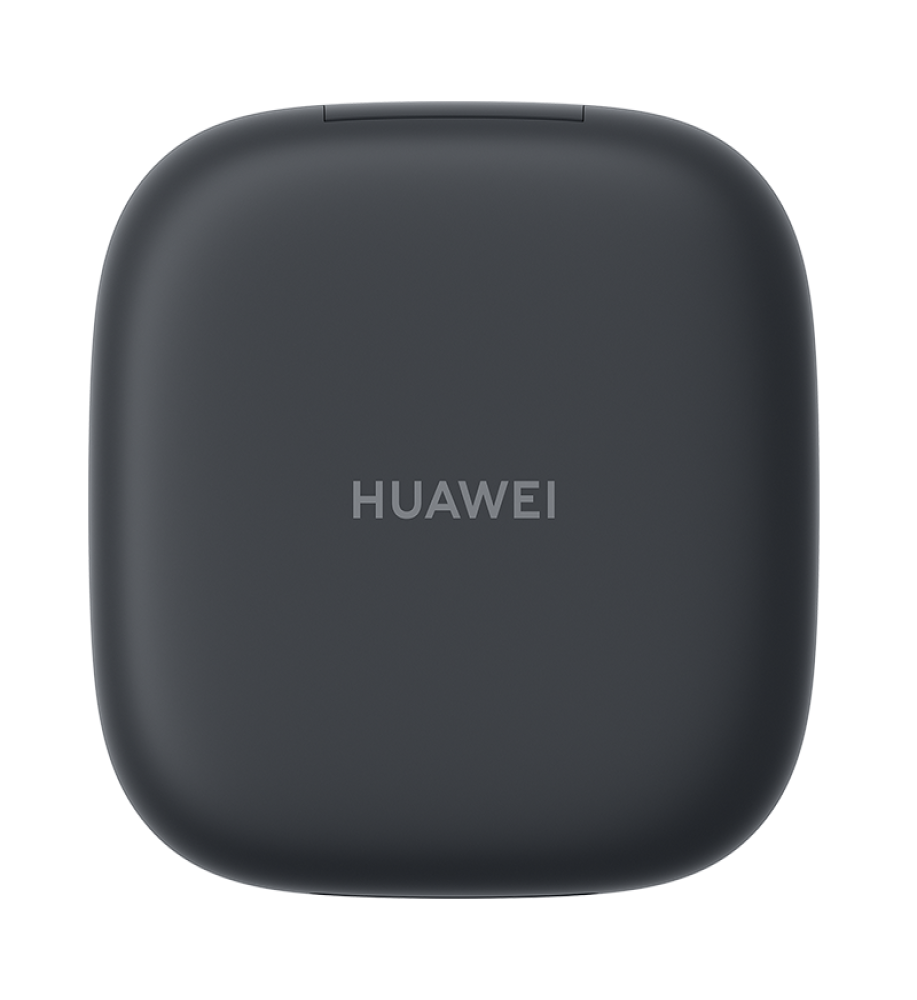

Charging case: Approximately 67.80 mm x 67.80 mm x 26.50 mm (H x W x D)

*Actual product size may vary depending on the product configuration and manufacturing process.

Audio Technology
Call noise cancellation/Multi-equalizer sound effects (including custom sound effects)

Sensor
Hall effect sensor/Capacitive sensor

Driver
High-sensitivity driver unit (17 mm x 12 mm) for each earbud

Connectivity
Bluetooth: Bluetooth 5.2

Pop-up pairing: Supported*

*This feature requires Huawei phones running EMUI 10.0 or later.

Battery
Battery Capacity
Battery Type: Lithium-ion Battery

Earbuds: 55 mAh (minimum per earbud)

Charging Case: 510 mAh (minimum)

Charging Method
Wired Charging: USB Type-C
5V 2A

Charging Time
Charging the earbuds using the charging case: approximately 40 minutes*

Charging the empty charging case using a cable: approximately 60 minutes*

Battery Life
Music Playback: 7 hours after a full charge and 28 hours with a fully charged charging case**

Voice Calling: 5 hours after a full charge and 20 hours with a fully charged charging case**

*Data comes from Huawei lab tests. During testing, the ambient temperature was 25°C. Actual results may vary depending on environmental factors and usage habits.

**Battery life and charging data come from Huawei lab tests. Audio Playback Test: During testing, audio was played in AAC format at 50% volume. Default settings were used for other features. Actual results may vary depending on volume, audio source, environmental interference, product features, and usage habits.
Voice Call Test: Calls were made at 50% volume in a low-noise environment. Default settings were used for other features. Actual results may vary depending on volume, environmental interference, noise, product features, assistive devices, system, and usage habits.

Control Buttons
Swipe forward/backward: Volume up/down

Double tap: Play/pause audio or answer/end a call

Triple tap: Play the next song

Long press: Reject a call

*Tap control gestures can be customized in the Smart Living app. Actual features may vary.

IP Rating
Earbuds: IP57
Charging Case: Not Water Resistant

**IP57 dust and water resistance applies only to the earbuds themselves, not the charging case. This device is splash, dust, and water resistant under normal conditions. It has been tested under controlled laboratory conditions and has been rated IP57 according to IEC standard 60529. Splash, water, and dust resistance may deteriorate over time with normal use. Avoid charging the device in humid environments. Liquid damage is not covered by the warranty. Wipe the earbuds (especially the charging contacts) clean after exercise and before placing them in the charging case. An IP57 rating means the device is protected against harmful ingress of static water up to a depth of 1 meter for up to 30 minutes under certain controlled test conditions, and when the temperature difference between the water and the device does not exceed 5°C.

Audio Format
SBC and AAC

Weight Dimensions
Each earbud: Approx. 8.9g

Charging Case: Approx. 67g

*Actual product weight may vary depending on product configuration and manufacturing process.

Indication
Indication outside charging case: Three-color indicator x 1
